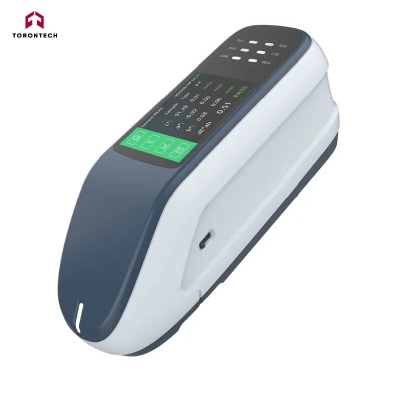

手持式分光光度計/比色計 TORONSPEC™ 23/25/26D系列

手持式分光光度計/色度計 - 高精度 ToronSpec™ 23/25/26D 系列，用於精確的顏色測量。擁有 360-780nm 的擴展波長範圍、先進的校準功能以及用於精確定位的內建鏡頭，確保在各種應用中都能可靠運作。

手持式分光光度計/比色計 TORONSPEC™ 23/25/26D系列特點

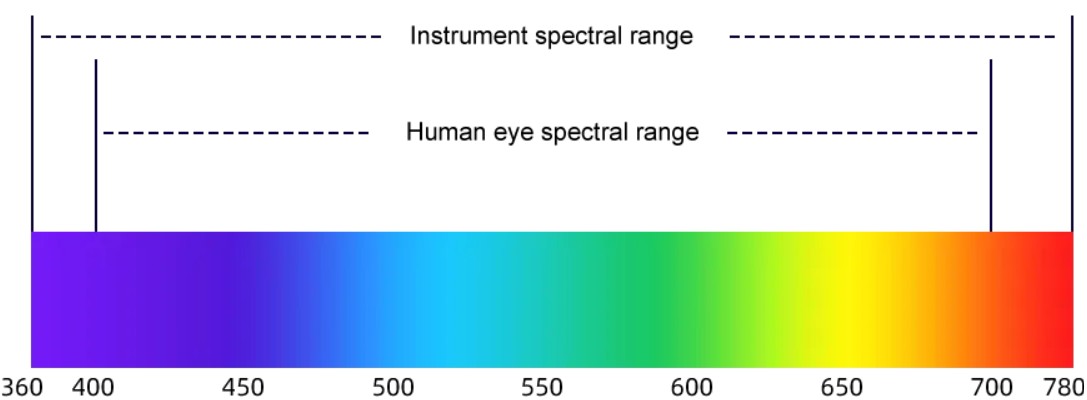

業界領先的波長範圍：360-780nm
標準色差計的波長範圍為 400-700nm。此型號將範圍擴展至 360-780nm，以提高精度和更廣泛的顏色測量能力。

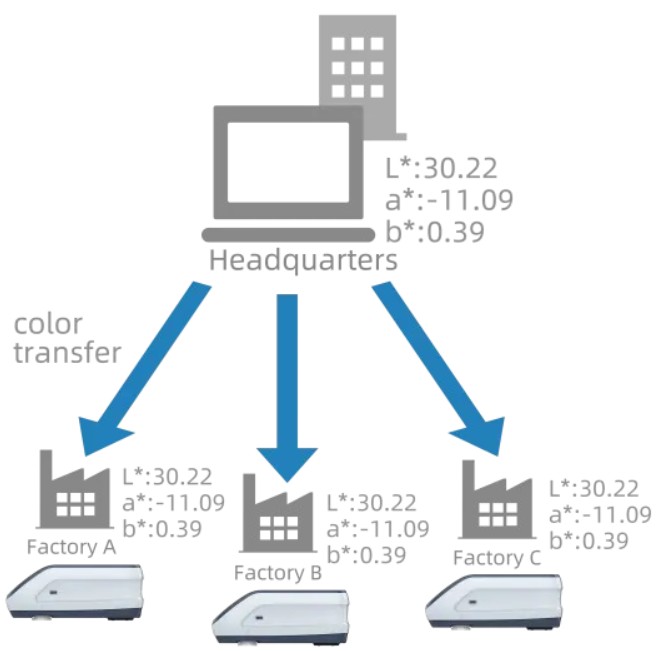

出色的階段間差異性和重複性
1. 階段間差異為 0.12，提高了製造商和供應商之間的顏色一致性。
2. 與上一代產品相比，重複性提高了 50%，達到 0.01。
雙光源系統比預期使用壽命更長
採用氙氣燈和LED燈，可提供充足的紫外線和可見光，同時確保數千萬次測量的使用壽命。

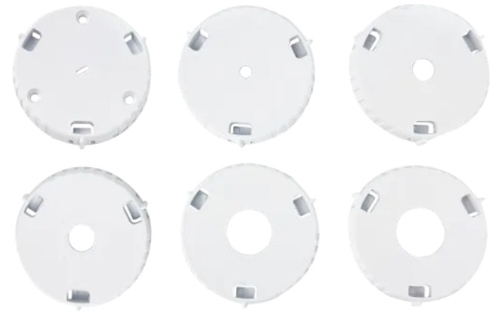

提供 6 個測量孔，方便測量不同形狀的樣品
具有六種孔徑選擇：11mm、10mm、6mm、5mm、3mm 和 1×3mm，可精確測量小物體和曲面。

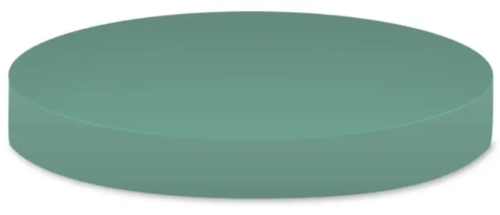

BCRA綠板波長校準
使用參考級 BCRA 綠色板自動校準波長精度，確保性能穩定可靠。
指示準確率提高了60%
配備新一代陣列式矽光感測器，光輸入量提高 65%，光譜解析度提高 39%。指示精度比上一代產品提高 60%。
智慧自動校準
無需頻繁手動校準。首次校準後，儀器會根據自身狀態和環境因素自動調整，確保性能穩定，精度持續穩定。

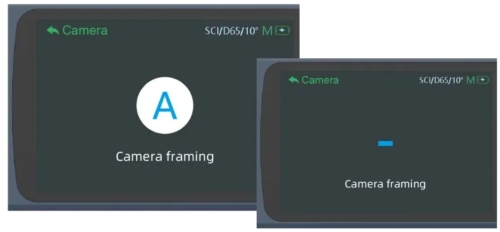

內建高清攝像頭，可清晰觀察測量區域
ToronSpec-26D 系列分光光度計配備內建相機，可拍攝測量區域的影像，確保精確定位，防止因未對準而產生的誤差。

手持式分光光度計/比色計 TORONSPEC™ 23/25/26D系列系列規格

Feature	ToronSpec™ 23D	ToronSpec™ 25D	ToronSpec™ 26D
SCI	●	●	●
SCE	●	●	●
Measurement repeatability※※	dE*ab ≤ 0.02	dE*ab ≤ 0.01
Inter-Instrument Agreement※※※	dE*ab ≤ 0.25	dE*ab ≤ 0.2	dE*ab ≤ 0.12
Caliber	Φ11mm, Φ6mm	Φ11mm, Φ10mm, Φ6mm, Φ3mm	Φ11mm, Φ10mm, Φ6mm, Φ5mm, Φ3mm, 1mm×3mm
Wavelength range	360-740nm	360-780nm
Light source life	6 million times	10 million times
UV	●	●	●
Measurement observation method	Camera	Camera	Camera
BCRA Green Brick	●	●	●
Measuring structure※	D/8,SCI+SCE
SCI+SCE Measure simultaneously	Support
Calibration method	BCRA certified black and white board energy calibration, green board wavelength accuracy calibration
Display accuracy	0.01
Lighting source	Full-band balanced LED light source + xenon lamp
UV light source	Yes
Measurement standard	Spectral reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB color difference (ΔEab, ΔEcmc, ΔE94, ΔE00), whiteness (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, Taube Berger Stensby), yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73) blackness (My, dM), stain fastness, discoloration Fastness, Tint (ASTM E313-00) color density CMYK (A, T, E, M), metamerism index Milm, Munsell, hiding power, strength (dye strength, tinting strength)
Light source conditions	A,B,C,D50,D55,D65,D75F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED- B4LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2
Observation method	Camera
Calibration	Intelligent automatic calibration
Software support	Android, iOS, Windows
Accuracy guaranteed	Guarantee first-level measurement qualification
Standard observer	2°, 10°
Integrating sphere diameter	40mm
Standards	ASTM E1164, ISO7724-1, DIN5033 Teil7, CIE No.15,GB/T 3978,GB 2893,GB/T 18833

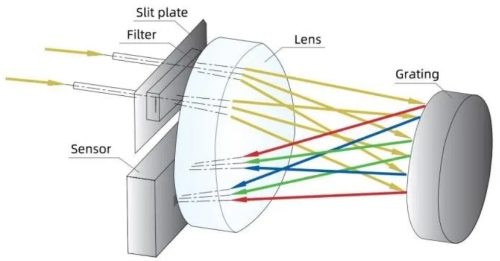

Spectral method	Grating
Sensor	Dual column high-precision CMOS array sensor
Wavelength interval	10nm
Reflectivity measurement range	0-200%
Reflectance resolution	0.0001
Measuring time	About 1 second
Interface	USB. Bluetooth
Screen	Full color screen, 3.5 inches
Battery capacity	Can continuously measure 8000 times on a single charge. 7.2V/3000mAh
Language	English and others
Storage	Instrument: 10.000 items: APP: Mass storage
Size	233mm x 77mm x 93mm
Weight	600g

※ Diffuse lighting/8° direction reception, including specular reflected light/removing specular reflected light.
※※ After the whiteboard is calibrated, measure the whiteboard 30 times at 5-second intervals. Standard deviation of the MAV caliber measurement results.
※※※ The average of the MAV caliber measurement values of 12 color plates inthe BCRA series.
