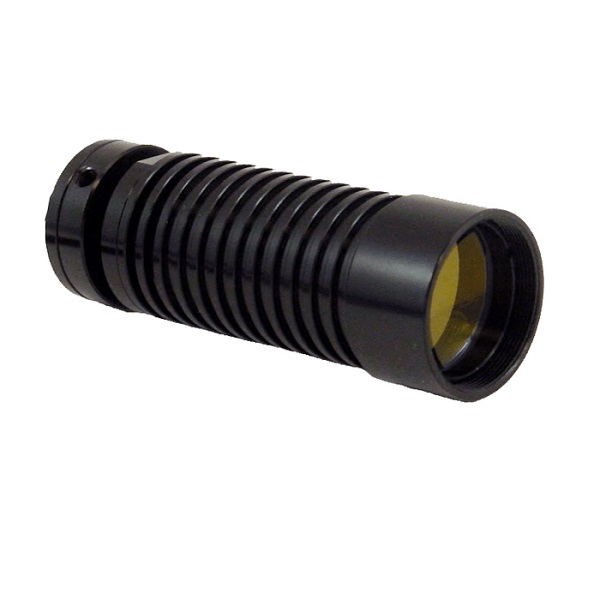

Deep UV collimated LEDs from wavelength range between 240nm and 340nm. Mightex LED collimators employ a high-NA aspherical collimating lens for precision collimation and high light throughput.
Deep UV 255-340nm Collimated LED Sources 系列規格：

Type-A

Part Number	Type	Wavelength (nm)	Beam Diameter (mm)	Half Diverging Angle (deg.)	Iop (mA)	Vop (V)	Typical Output Power (mW)¹
LCS-0265-02-23	A	265	23	1	350	6.3	202
LCS-0275-04-23	A	275	23	1	600	6	35
LCS-0280-03-23	A	280	23	1	500	5.8	30
LCS-0295-03-23	A	295	23	1	600	5.8	25
LCS-0300-03-23	A	300	23	1	500	6	25
LCS-0310-03-23	A	310	23	1	350	5.8	30
LCS-0325-03-23	A	325	23	1	500	5.4	15
LCS-0340-02-22	A	340	22	1.7	500	4.3	23

Type-D

Part Number	Type	Wavelength (nm)	Beam Diameter (mm)	Half Diverging Angle (deg.)	Iop (mA)	Vop (V)	Typical Output Power (μW)¹
LCS-0255-0020-20	D	255	20	0.6	30	6.5	150
LCS-0295-0015-20	D	295	20	0.6	30	5.5	250
LCS-0310-0015-20	D	310	20	0.6	30	5.5	300
LCS-0340-0200-20	D	340	20	0.6	500	4.3	17mW

1. Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual output of any given LED may vary. Specifications are intended to be used as a guideline.
