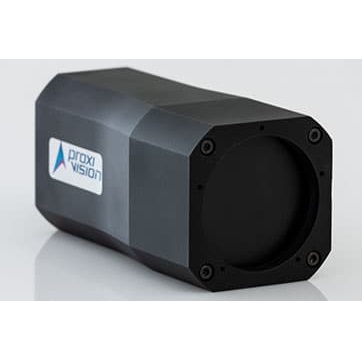

Phosphor Coupled X-Ray工業相機

發布時間: 2020-07-30 16:43

ProxiVision

Proxivision Phosphor Coupled X-Ray工業相機系列提供客戶超高可靠度與影像清晰度來滿足機器視覺、高能電磁波影像領域之需求。在工業相機領域中，我們想要捕捉UV、X-Ray等高能波段的影像，主要須從幾個方向著手:
1.利用各式規格的Phosphor coating螢光屏，將高能波段訊號轉換成可見光訊號，避免影像感測器受到損壞。
2.利用fiber optical plate以及taper等元器件，幫助可見光訊號更吉中的被收取進而讓影像感測器接收。
Proxivion多年來持續大量研發各式Phosphor coating與fiber optical plate taper技術，幫助旗下X-Ray工業相機優化性能，而除了商規HRX、HDX系列工業相機外，Proxivion亦提供客製化技術幫助客戶開發適合的客製化X-Ray工業相機。
Phosphor Coupled X-Ray工業相機主要參數：

active diameter: 25mm, 40mm, customer specific

Phosphor Coupled X-Ray Cameras 特點：

Modular design for effective integration of a wide set of options
Application-optimized coupling between detection screen and camera sensor
Setup and camera electronics according to customer requirements
Many screen and sensor types (large range of pixel and sensor sizes, resolutions, framerates)
Coupling with fiber optical plates (1:1) or adaption of field of view by taper coupling
Coupling efficiency up to 70% (1:1)
P43, P46, P47, P11 and other scintillators
