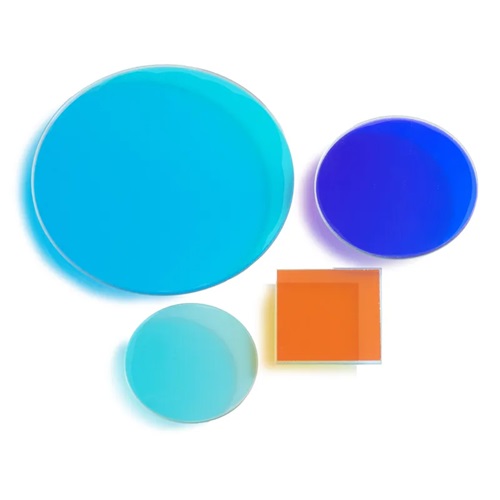

二向色鏡 Dichroic mirror

發布時間: 2020-09-22 11:48

Andover

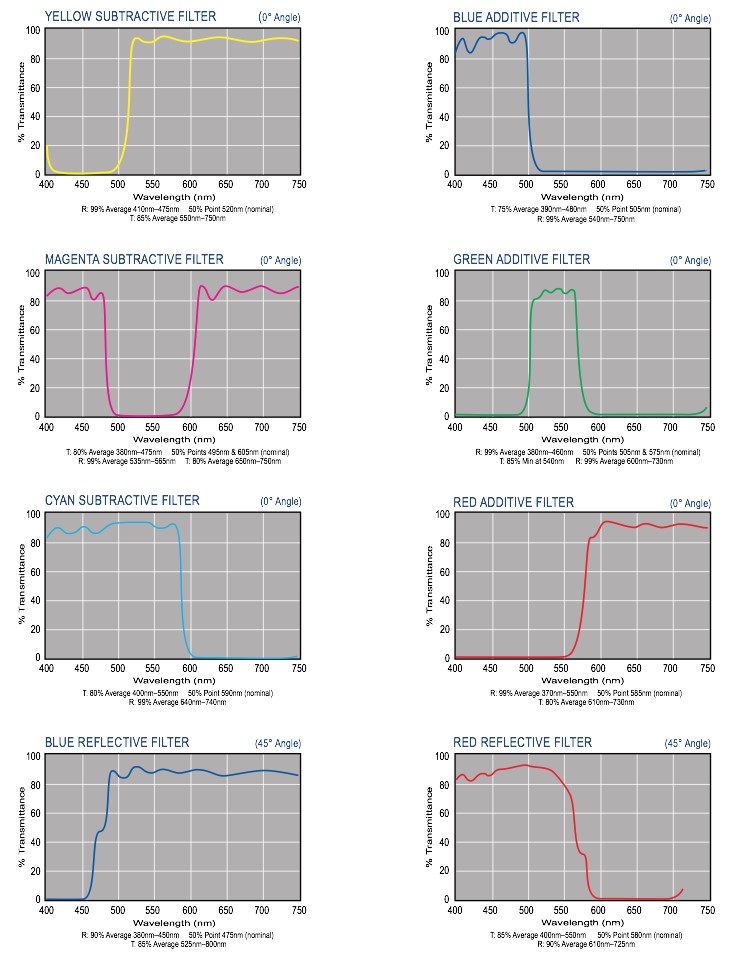

Dichroic filters (color separation filters) are used in a variety of applications where it is necessary to isolate certain regions of the visible spectrum. A few of the more common applications are for use in color enlargers and photocopiers as light balancing filters. They are also very useful in any application where it may be desirable to separate the incident energy into two or more light beams. The following spectral curves are displayed at normal incidence, but for many applications, such as combining colors, it may be desirable to use them in the reflecting mode at a 45° angle of incidence.
All of the coating materials used in these filters produce hard, durable dielectric films which show no signs of degradation with age and use. Unlike the organic dye or gelatin type which will fade with usage these filters are very stable and should not suffer any loss in efficiency with time. These filters are also available in sets. Filters can also be mounted in threaded rings.
分色濾光片主要參數

Thickness: 1.0mm ±0.25mm
Size Tolerance: +0.0mm/-0.25mm
Min. Clear Aperture:95% of outside dimension
Substrate Material:Soda lime glass
Flatness:3–5 waves per 25mm
Parallelism:3 arc minutes or better
Surface Quality:80/50 per MIL-C-48497A

分色濾光片特點：

Provide sharp separation between transmission and reflection
Spectrally stable at changing temperatures and humidity
Available in custom designs, colors, angles of incidence, substrates, dimensions, and coatings

分色濾光片應用：
