PMT光電倍增管模組系列
發布時間: 2020-10-19 16:57
Sens-Tech
PMT光電倍增管模組系列 特點
- shorter time-to-market
- cost effectiveness
- applications support long after the sale
- plug-and-play versions
- user friendly
- physically robust
- long term stability of operation
- reduced susceptibility to e-m interference
- user protected package with encapsulated HV
- adjustable versions offering user control
工作於光子計數模式，可輸出數位信號，或通過RS232,USB直接與電腦連接
- 光子計數模式下計數率可達
- X射線檢測計數率可達10MHz
- 帶製冷的模組可顯著降低暗計數值
輸出類比電流或電壓信號
- 快速檢測細菌活性
- 檢測SOx和NOx含量
- 程序控制
| Type | Effective cathode dia. Mm | Cathode type | Spectral response range nm | Typical dark counts@ 20°C | Max count rate MHz | Output signal | Data Sheet |

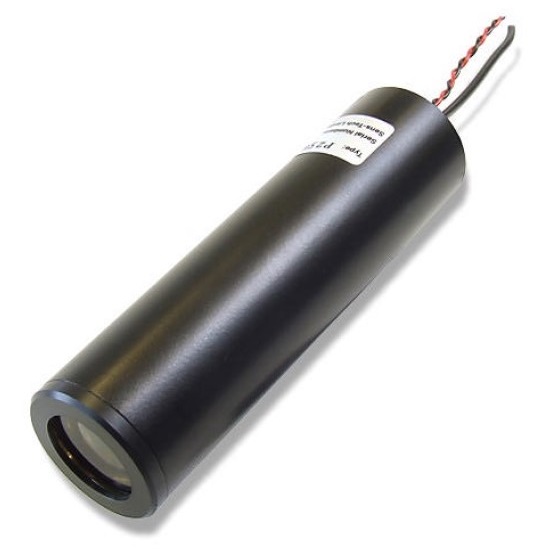

| P25PC | 22 | bialkali | 280 to 630 | 100ˢ⁻¹ | 100 | TTL |
|
| P25PC-16 | 22 | S20 | 300 to 850 | 100ˢ⁻¹ | 100 | TTL |
|
| P25USB | 22 | bialkali | 280 to 630 | 100ˢ⁻¹ | 100 | USB |
|
| P25USB-01 | 22 | S20 | 300 to 850 | 1000ˢ⁻¹ | 100 | USB |
|
| P30PC | 25 | bialkali | 280 to 630 | 100ˢ⁻¹ | 100 | TTL |
|
| P30USB | 25 | bialkali | 280 to 630 | 100ˢ⁻¹ | 100 | USB |
|
| DM0016C | 22 | bialkali | 280 to 630 | 50ˢ⁻¹ | 70 | TTL |
|
| DM0087C | 22 | S20 | 300 to 850 | 1000ˢ⁻¹ | 70 | TTL |
|
| DM0089C | 22 | bialkali | 280 to 630 | 50ˢ⁻¹ | 70 | USB |
|
| DM0090C | 22 | S20 | 300 to 850 | 1000ˢ⁻¹ | 70 | USB |
|
Analogue Modules
| Type | Effective cathode dia. Mm | Cathode type | Spectral response range nm | Amplifier bandwidth MHz | Data Sheet |
| P25A | 22 | bialkali | 280 to 630 | 100 |
|
| P25N | 22 | bialkali | 280 to 630 | - |
|
| P30PVN | 25 | S20 | 300 to 850 | - |
|
| P30CW5* | 25 | bialkali | 280 to 630 | - |
|
| DM0036C | 22 | bialkali | 280 to 630 | 20 |
|
| DM0088C | 22 | S20 | 300 to 850 | 20 |
|
