LMK 7-128成像亮度計∣成像亮度測量設備

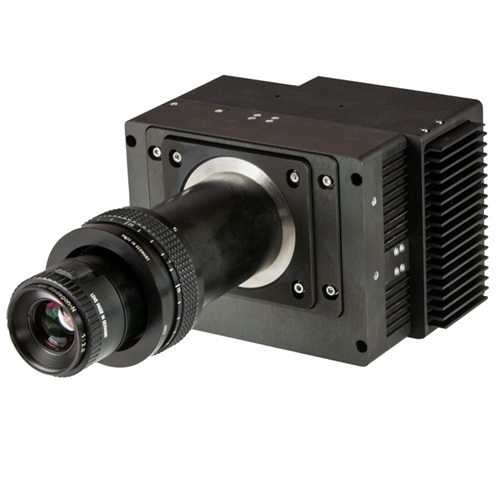

LMK 7-128是 TechnoTeam 的旗艦級成像亮度測量設備 ( ILMD )，是一款128MP單色相機，採用索尼 IMX661 CMOS 感測器，並配備自主研發的 V(λ) 匹配光度校準，透過 10GbE 乙太網路供電。其主要設計目標是實現線上 DeMura 校正和高解析度線上檢測。兩種工作模式可滿足像素級顯示計量和高動態範圍照明應用的需求。

LMK 7-128成像亮度計特點

超高解析度與頂級感光元件
靈活的雙重操作模式
進階像素級量測與專利去摩爾紋技術
頂尖的光學與光度計量性能
工業級在線整合與連接性

LMK 7-128成像亮度計應用

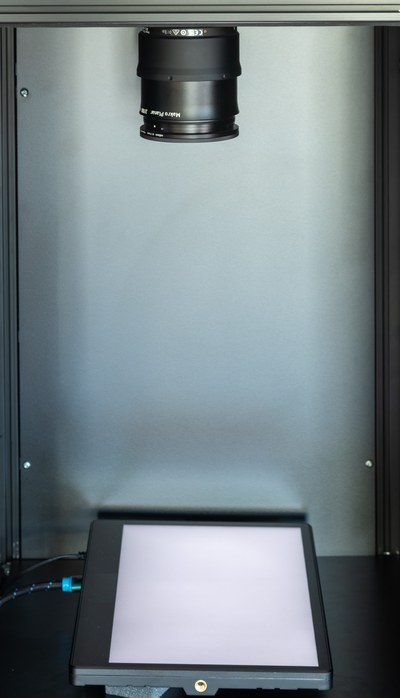

高解析度顯示器測量與DeMura校正 －OLED、µLED、Micro-LED、LCD面板像素級測量：均勻性、局部對比、次像素分析。結合內建µShaking和DeMura軟體，建議使用這款測量頭進行線上DeMura校正。完整內容： DeMura與像素級測量。
照明和號誌檢查（分箱模式） — 一般照明燈具、號誌燈、交通及鐵路號誌、背投影螢幕；一台攝影機即可覆蓋顯示器和照明模式。
頭燈、日間行車燈和外部汽車照明計量 ——像素級矩陣式、高清和ADB頭燈；結合TechnoTeam的螢幕測角光度計，以比傳統掃描測角光度計快得多的速度對頭燈、日間行車燈和一般照明進行間接光強度分佈（LID）測量快得多。

LMK 7-128成像亮度計主要參數

Technical Data
Sensor — imaging CMOS matrix system	13 400 × 9 528 — ~128 MP (127.7 MP exact) Sony-CMOS [ IMX661 (APS-C); 12 Bit digital ]
Pixel size	3.45 µm
Binning modes	1×1 (native) to 32×32
Housing dimensions without lenses (H × W × D)	Stable black anodized aluminum housing: 150 × 125 × 125 mm
Weight	Camera housing without lens: ~1 800 g
Data interface	10 Gigabit Ethernet (M12 X-coded), Power over Ethernet
Metrological data
Dynamic range	Single picture measurement: 1:1100 (~ 61 dB) High-dynamic measure (exposure bracketing series): 1:10,000,000 (~ 140 dB)
Spectral matching¹	Matched to the spectral luminous efficiency V(λ) for photopic vision with a full-glass filter
Metrological specification	V(λ) [ f1'< 3 %]2
Measuring quantity	Luminance: L (cd/m²)
Measuring range³	1 ms ≈ max. 10,000 cd/m² 3 s ≈ max. 3.3 cd/m² The detection limit⁴ (f₃,₀) for all integration/exposure times is about 0.04 % relative to the given maximum luminance value. Higher luminance can be measured using optional neutral density filters.
Calibration uncertainty⁵	fix focused lenses ∆L [ < 2% ] focusable lenses ∆L [ < 2.5% ]
Repeatability⁶	∆L [ < 0.1% ]
Measuring accuracy	∆L [ < 3%] for standard illuminant A
Uniformity⁴	∆L [ < 2% ]

¹ Typical average result for entocentric lenses, specific results available with calibration certification or on request
² Spectral mismatch f‘1 according to ISO/CIE 19476:2014
³ The luminance value stands for the measuring range end value at the specified exposure/integration time
⁴ Definition and measurement according to CIE 244:2021
⁵ Measurements according to CIE 244:2021 using a luminance standard traceable to the PTB (Physikalisch-Technische-Bundesanstalt, the National Metrology Institute of Germany)
⁶ Measurement performed on a stabilized white LED light source L=100 cd/m² – mean value over 100 × 100 camera image pixel
