MS-4400 XYZ AUTOMATED STAGE

發布時間: 2020-03-31 16:32

ASI Imaging

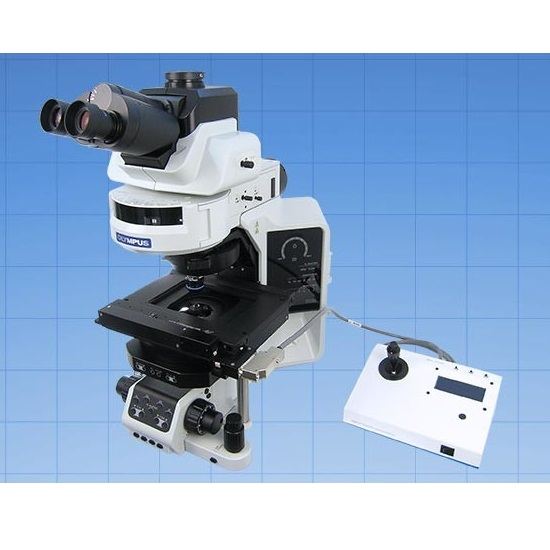

The MS-4400 XYZ provides a high resolution and highly repeatable means of controlling the X, Y, and Z position of the microscope stage. The MS-4400 XY stage has been specifically designed for larger upright microscopes like the Leica DMR-series, the Nikon Eclipse 80i, the Olympus BX series, and the Zeiss Axioplan, Axioskop 2, and Axio Imager. All axes derive their precise control through the use of closed-loop DC servomotors employing high-resolution rotary encoders for positioning feedback. By using closed-loop control of the stage position, there is no chance that the stage will become lost, as can occur with open-loop micro-stepped stages after a number of moves and direction changes. The MS-4400 XY stage utilizes crossed-roller slides, a high-precision lead screw, and zero-backlash miniature geared DC servomotors for smooth and accurate motion. The Z-axis drive also uses ASI’s proven line of closed-loop motor drives, each custom fitted to the microscope. The microprocessor-controlled MS-2000 control unit provides for RS 232 and USB communication with a host computer.
MS-4400 XYZ AUTOMATED STAGE特點：

Closed-loop DC servo control of the X, Y, and Z-axes for precise positioning and highly repeatable focusing
Wide dynamic speed range with XY joystick control
Utilizes ASI’s proven Z-axis drives
Z-axis clutch for easy switching between manual and motor-driven focus control
Backlit LCD display shows X, Y, and Z coordinates
“Zero” and “Home” button for simple stand-alone operations
Compact ergonomic tabletop control unit size is 6″D x 9″W x 3″H
Microprocessor control with RS-232 serial and USB communications
Proven operation with many popular software packages
